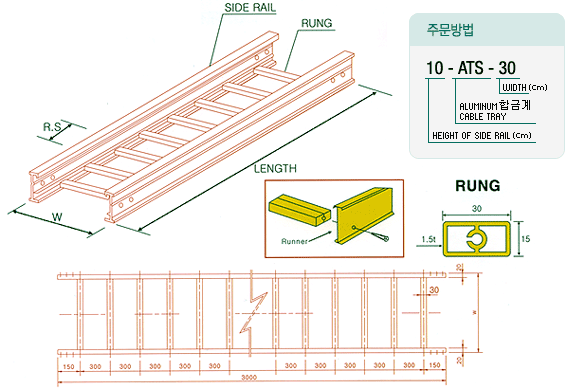

> 제품소개 > Straight Tray |
 |
| |
 Standard
Material : Aluminum Alloy 6063s - T5(KSD6759) |
| Standard
Finishes : ANODIC ACID AFTER EXTRUSION IN ACCORDANXE
WITH KSD8301 |
| Fabrication
: Tapping Screw |
| Standard
Length : 3,000mm |
|
 |
| |
 |
| |

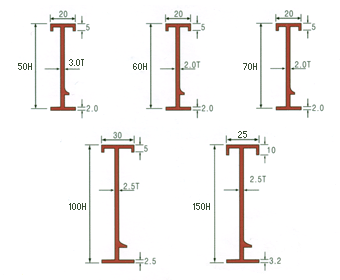

 Side
Rail Type |
[Unit:mm] |
 |
| Type
No. |
Width |
A.W |
| 7ATS-10 |
100 |
|
| 7ATS-15 |
150 |
|
| 7ATS-20 |
200 |
|
| 7ATS-30 |
300 |
|
| 7ATS-40 |
400 |
|
| 10ATS-20 |
200 |
|
| 10ATS-30 |
300 |
|
| 10ATS-40 |
400 |
|
| 10ATS-50 |
500 |
|
| 10ATS-60 |
600 |
|
| 10ATS-80 |
800 |
|
| 10ATS-100 |
1000 |
|
| 15ATS-30 |
300 |
|
| 15ATS-40 |
400 |
|
| 15ATS-50 |
500 |
|
| 15ATS-60 |
600 |
|
| 15ATS-80 |
800 |
|
| 15ATS-100 |
1000 |
|
|
| |
(3m당) |
|
|
| |
|
|
|
