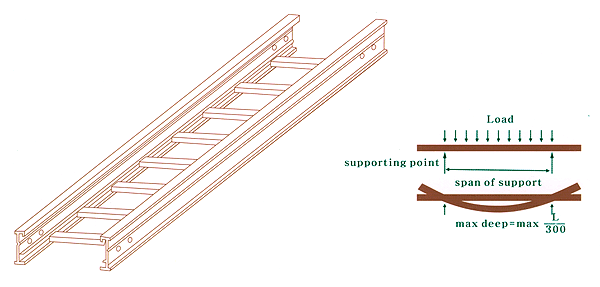

> 제품소개 > Allowable Loads |
 |
| |
 |
| |

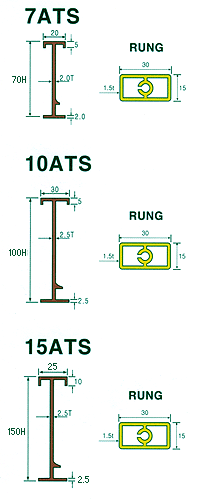

 Side
Rail Type |
 |
 |
| Type
No. |
Supporting
Span(M) |
| 1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
| 7ATS-20 |
670 |
220/330 |
120/240 |
60/150 |
32/100 |
| 7ATS-30 |
620 |
219/329 |
120/240 |
60/150 |
32/100 |
| 7ATS-40 |
450 |
218/328 |
120/239 |
60/149 |
32/99 |
| 7ATS-50 |
370 |
218/327 |
119/238 |
59/148 |
32/98 |
| 7ATS-60 |
310 |
217/326 |
119/238 |
59/148 |
32/98 |
| 7ATS-80 |
250 |
215/325 |
118/236 |
58/147 |
32/99 |
| 7ATS-100 |
220 |
213/323 |
117/234 |
57/146 |
31/96 |
| 10ATS-30 |
560 |
490/720 |
290/720 |
148/580 |
84/252 |
| 10ATS-40 |
530 |
450/670 |
289/578 |
147/367 |
83/250 |
| 10ATS-50 |
500 |
410/620 |
288/576 |
146/365 |
82/246 |
| 10ATS-60 |
450 |
390/580 |
287/574 |
145/362 |
82/245 |
| 10ATS-80 |
410 |
360/520 |
285/570 |
144/360 |
81/243 |
| 10ATS-100 |
370 |
320/480 |
283/566 |
142/355 |
80/240 |
| 15ATS-40 |
450 |
400/600 |
240/480 |
130/300 |
72/216 |
| 15ATS-50 |
430 |
380/570 |
228/456 |
119/298 |
72/215 |
| 15ATS-60 |
420 |
370/550 |
220/440 |
118/296 |
72/214 |
| 15ATS-80 |
380 |
340/510 |
200/400 |
117/293 |
71/213 |
| 15ATS-100 |
340 |
300/450 |
180/360 |
116/290 |
71/212 |
|
| |
(3m당) |
|
| |
|
| |
|
|
|
