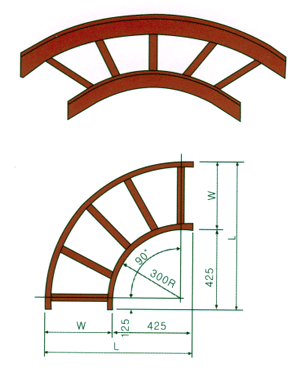

 AHE(Horizontal
Elbow) |
 |
| Type
No. |
Width |
L |
| 7AHE-20 |
200 |
625 |
| 7AHE-30 |
300 |
725 |
| 7AHE-40 |
400 |
825 |
| 7AHE-50 |
500 |
925 |
| 7AHE-60 |
600 |
1,025 |
| 7AHE-80 |
800 |
1,225 |
| 7AHE-100 |
1,000 |
1,425 |
| 10AHE-50 |
500 |
925 |
| 10AHE-60 |
600 |
1,025 |
| 10AHE-80 |
800 |
1,225 |
| 10AHE-100 |
1,000 |
1,425 |
| 15AHE-50 |
500 |
925 |
| 15AHE-60 |
600 |
1,025 |
| 15AHE-80 |
800 |
1,225 |
| 15AHE-100 |
1,000 |
1,425 |
|
|
 |
| |
|
| |

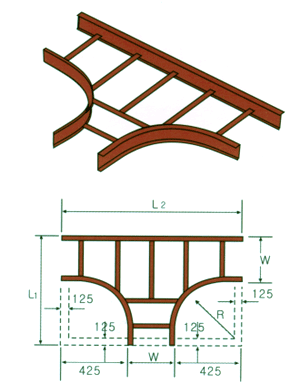

AHT(Horizontal
Tee) |
 |
| Type
No. |
Width |
L1 |
L2 |
| 7AHT-20 |
200 |
625 |
1,050 |
| 7AHT-30 |
300 |
725 |
1,150 |
| 7AHT-40 |
400 |
825 |
1,250 |
| 7AHT-50 |
500 |
925 |
1,350 |
| 7AHT-60 |
600 |
1,025 |
1,450 |
| 7AHT-80 |
800 |
1,225 |
1,650 |
| 7AHT-100 |
1,000 |
1,425 |
1,850 |
| 10AHT-50 |
500 |
925 |
1,350 |
| 10AHT-60 |
600 |
1,025 |
1,450 |
| 10AHT-80 |
800 |
1,225 |
1,650 |
| 10AHT-100 |
1,000 |
1,425 |
1,850 |
| 15AHT-50 |
500 |
925 |
1,350 |
| 15AHT-60 |
600 |
1,025 |
1,450 |
| 15AHT-80 |
800 |
1,225 |
1,650 |
| 15AHT-100 |
1,000 |
1,425 |
1,850 |
|
|
 |
| |
|
| |

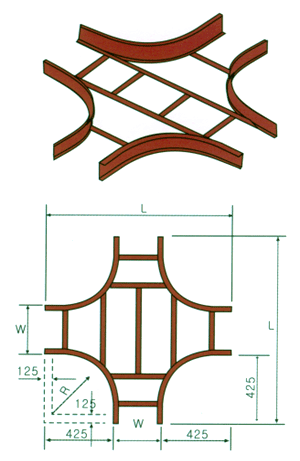

AHC(Horizontal
Cross) |
 |
| Type
No. |
Width |
L |
| 7AHC-20 |
200 |
1,050 |
| 7AHC-30 |
300 |
1,150 |
| 7AHC-40 |
400 |
1,250 |
| 7AHC-50 |
500 |
1,350 |
| 7AHC-60 |
600 |
1,450 |
| 7AHC-80 |
800 |
1,650 |
| 7AHC-100 |
1,000 |
1,850 |
| 10AHC-50 |
500 |
1,350 |
| 10AHC-60 |
600 |
1,450 |
| 10AHC-80 |
800 |
1,650 |
| 10AHC-100 |
1,000 |
1,850 |
| 15AHC-50 |
500 |
1,350 |
| 15AHC-60 |
600 |
1,450 |
| 15AHC-80 |
800 |
1,650 |
| 15AHC-100 |
1,000 |
1,850 |
|
|
|
